Ercoupe rudder pedal brake fix
- Matt Gunsch
- Offline
Less
More
- Posts: 455
30 Jun 2019 09:14 #1
by Matt Gunsch
A&P, IA, PPSEL
too many years GA and Warbird Maint
Check out the Ercoupe Discussion group on facebook
Replied by Matt Gunsch on topic Ercoupe rudder pedal brake fix
I doubt it is kosher with the FAA, but a creative fix, to make it a bit better, paint the surface with wing walk paint or put anti slip tape on it.
A&P, IA, PPSEL
too many years GA and Warbird Maint
Check out the Ercoupe Discussion group on facebook
Please Log in or Create an account to join the conversation.
- Lawson Laslo
- Topic Author
24 Jun 2019 22:42 - 24 Jun 2019 22:44 #2
by Lawson Laslo
Ercoupe rudder pedal brake fix was created by Lawson Laslo

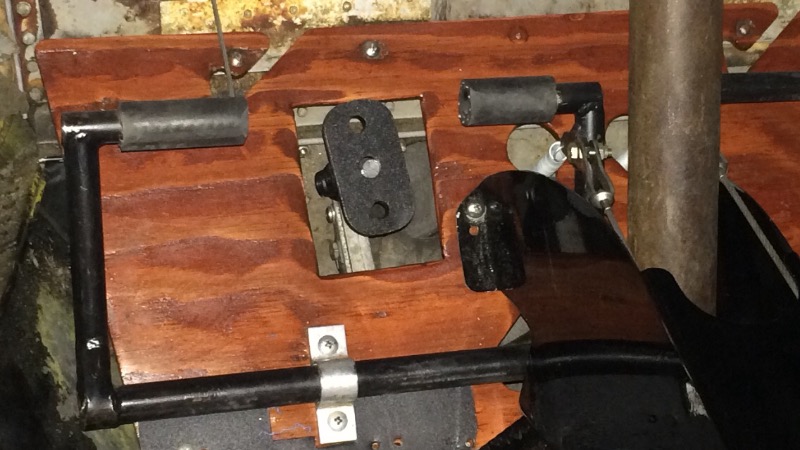

When we had the rudder pedals installed they cut off the actual brake pedal to make room for the pedals and just leave a round numb, this makes it very hard to push in the brakes and stop the airplane, as there’s no leverage or grip.

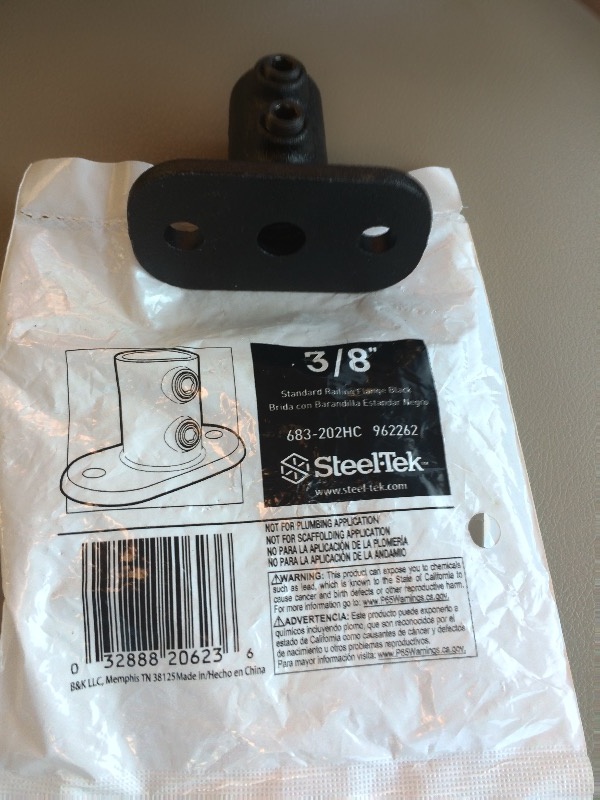

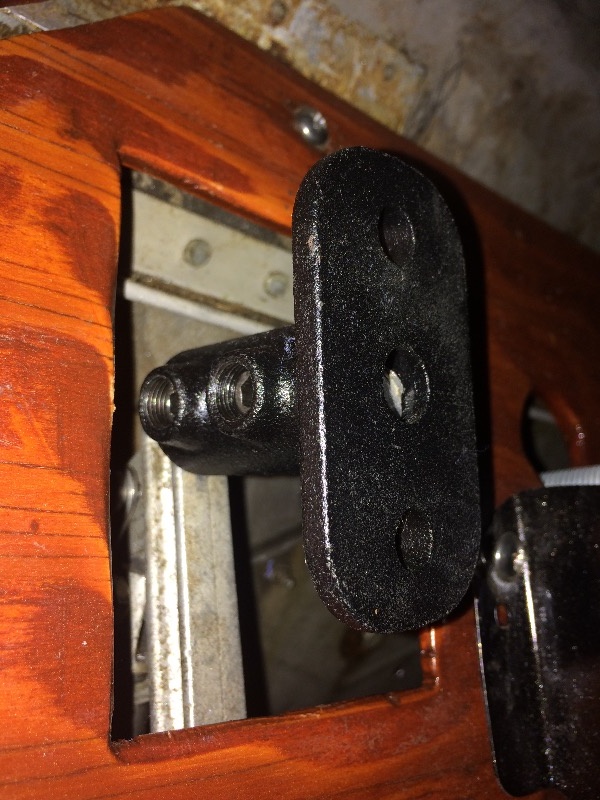

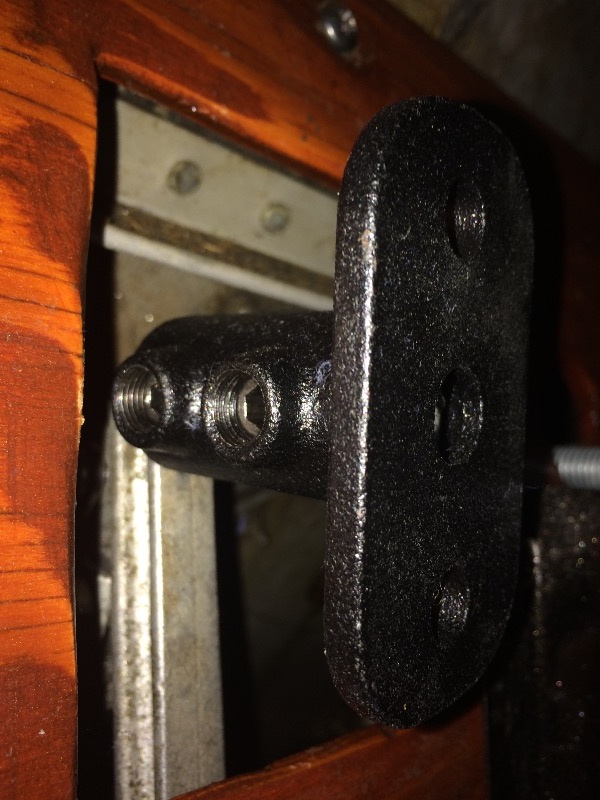

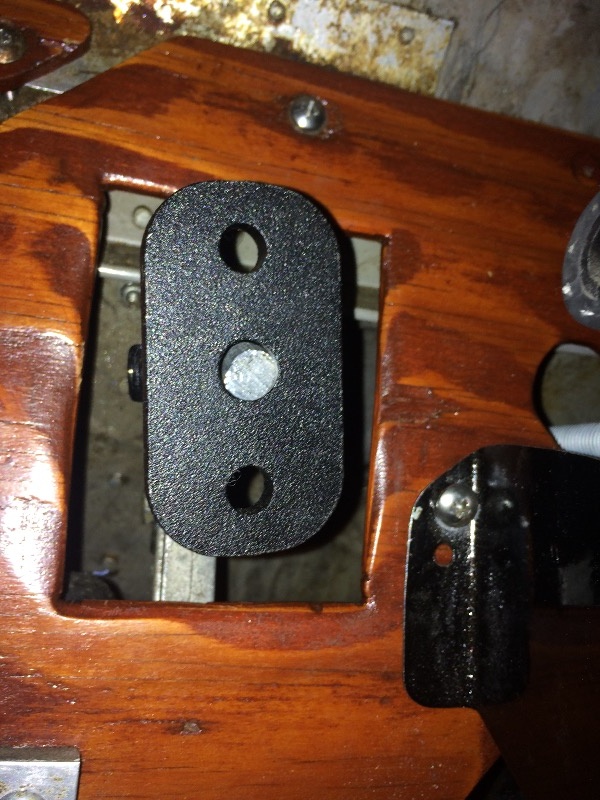

To fix this we purchased a flange with set screws from local hardware store and attached it to the brake pedal, it clears the rudder pedals and works good.
To fix this we purchased a flange with set screws from local hardware store and attached it to the brake pedal, it clears the rudder pedals and works good.
Last edit: 24 Jun 2019 22:44 by Lawson Laslo.
Please Log in or Create an account to join the conversation.
