23 Oct 2020 19:07 #1 by Lawson Laslo
Replied by Lawson Laslo on topic Crankcase Breather Tube?
Great thank you

Lawson Laslo
Oklahoma city

1946 Ercoupe
O-200 100hp
N2005H
"War Bug"

Please Log in or Create an account to join the conversation.

More
21 Oct 2020 14:36 - 21 Oct 2020 18:30 #2 by Dennis Tar
Replied by Dennis Tar on topic Crankcase Breather Tube?

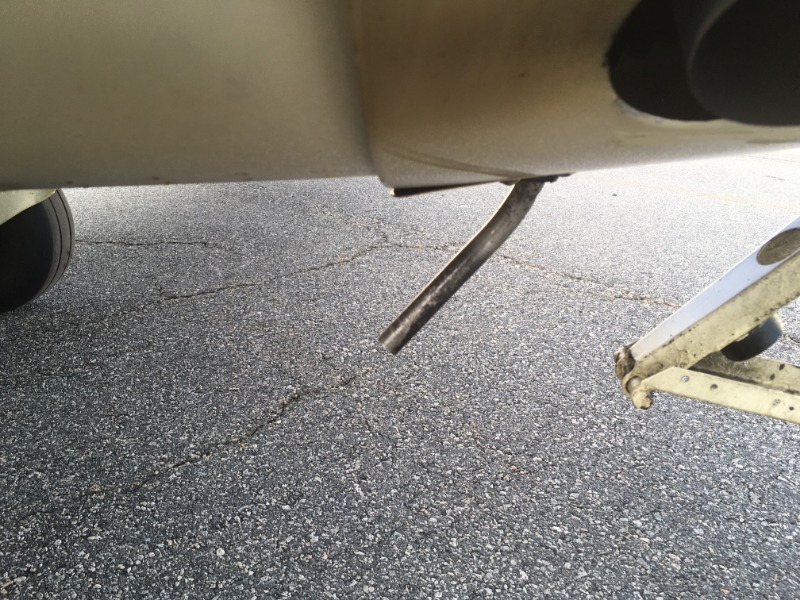

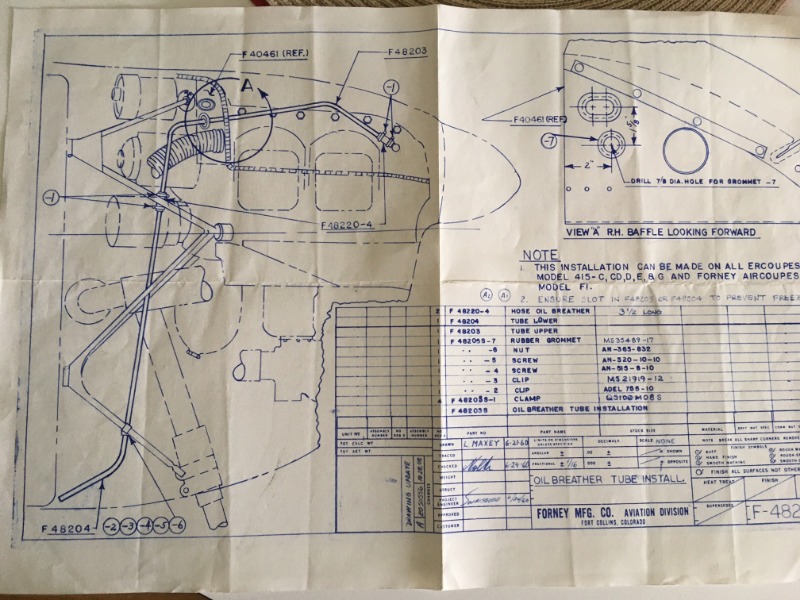

Attached is a picture of my extension below the cowl based on the attached schematic for the proper routing of the tube assembly to the crankcase of a C85.
Hope this answers your question.
Dennis Tar
Attachments:
Last edit: 21 Oct 2020 18:30 by Dennis Tar. Reason: attachments
The following user(s) said Thank You: Donald McClain, Lawson Laslo

Please Log in or Create an account to join the conversation.

More
18 Oct 2020 13:04 - 18 Oct 2020 13:04 #3 by Lawson Laslo
Crankcase Breather Tube? was created by Lawson Laslo
Hello,
How far out should the crankcase breather tube extend out from the bottom cowling?
Thanks

Lawson Laslo
Oklahoma city

1946 Ercoupe
O-200 100hp
N2005H
"War Bug"

Last edit: 18 Oct 2020 13:04 by Lawson Laslo.
